DC Centrifugal Fans

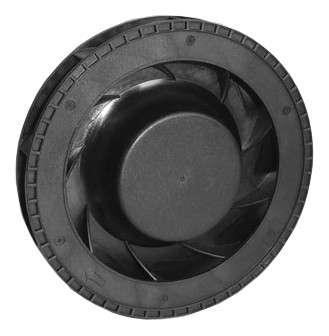

CFD10025 SERIES

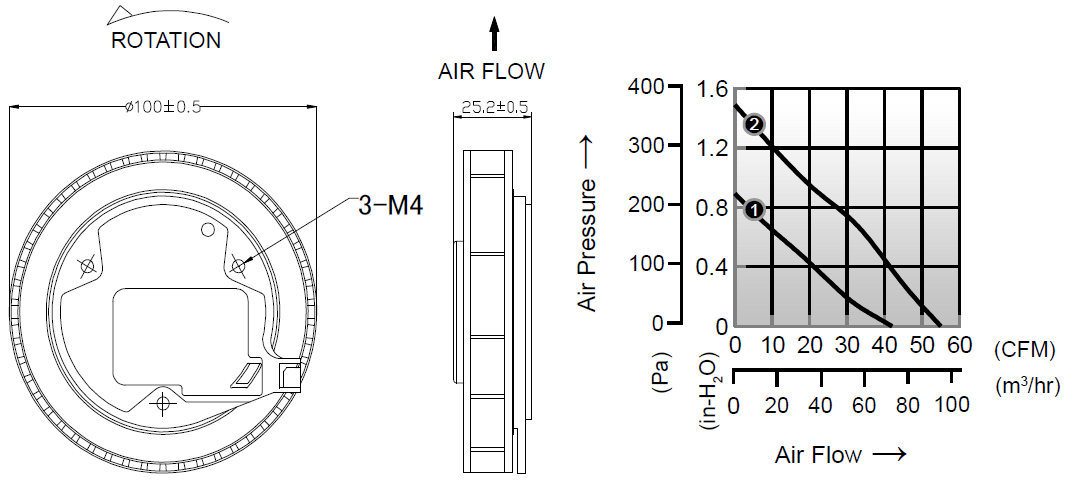

- Size: Ø100 x 25mm
- Impeller: Plastic (UL 94V-0)
- Motor: DC Blushless Motor External Rotor
- Operating Temperature: -10°C to + 70°C
- Insulation: Class B
- Connection: Lead Wire
- Bearing: Ball Type
- Weight: 130g
- Impeller: Plastic (UL 94V-0)
- Motor: DC Blushless Motor External Rotor
- Operating Temperature: -10°C to + 70°C
- Insulation: Class B
- Connection: Lead Wire
- Bearing: Ball Type
- Weight: 130g
Download PDF
CFD10025 SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
① CFD10025V12BHWGN |
12 |
0.5 |
6.0 |
4300 |
42.0 |
22.6 |
53 |
|
② CFD10025V12BUHWGN |
12 |
1.1 |
13.2 |
5300 |
55.0 |
37.8 |
58 |
W: Lead Wires, B: Ball Type
