DC Fans 6cm ~9cm

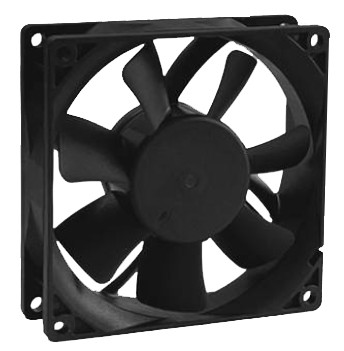

AD9225GD SERIES

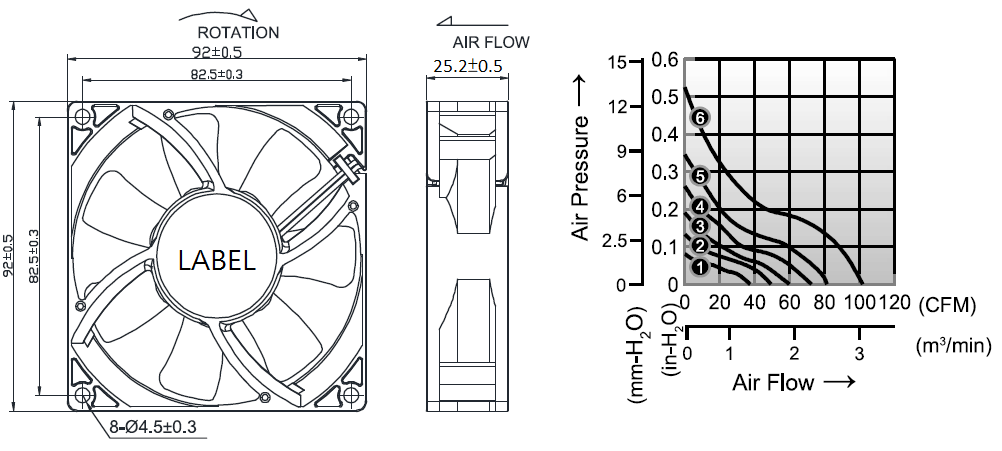

- Size: 92 x 92 x 25mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 89.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 89.0g
Download PDF
AD9225GD SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD9225V12BJWGD |
12 |
0.10 |
1.20 |
1800 |
37.3 |
0.08 |
25 |
|
① AD9225V24BJWGD |
24 |
0.08 |
1.92 |
1800 |
37.3 |
0.08 |
25 |
|
② AD9225V12BLWGD |
12 |
0.12 |
1.44 |
2300 |
49.5 |
0.13 |
31 |
|
② AD9225V24BLWGD |
24 |
0.10 |
2.40 |
2300 |
49.5 |
0.13 |
31 |
|
③ AD9225V12BMWGD |
12 |
0.21 |
2.57 |
2800 |
59.9 |
0.19 |
37 |
|
③ AD9225V24BMWGD |
24 |
0.12 |
2.88 |
2800 |
59.9 |
0.19 |
37 |
|
④ AD9225V12BHWGD |
12 |
0.32 |
3.84 |
3300 |
72.7 |
0.26 |
42 |
|
④ AD9225V24BHWGD |
24 |
0.18 |
4.32 |
3300 |
72.7 |
0.26 |
42 |
|
⑤ AD9225V12BUWGD |
12 |
0.40 |
4.80 |
3800 |
81.5 |
0.34 |
46 |
|
⑤ AD9225V24BUWGD |
24 |
0.25 |
6.00 |
3800 |
81.5 |
0.34 |
46 |
|
⑥ AD9225V12BVWGD |
12 |
0.75 |
9.00 |
4800 |
102.6 |
0.40 |
53 |
|
⑥ AD9225V24BVWGD |
24 |
0.40 |
9.60 |
4800 |
102.6 |
0.40 |
53 |
B = Ball Bearing
