DC Fans 2cm ~5cm

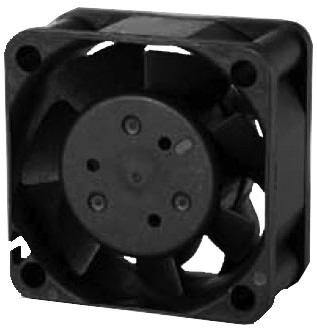

AD4020GB SERIES

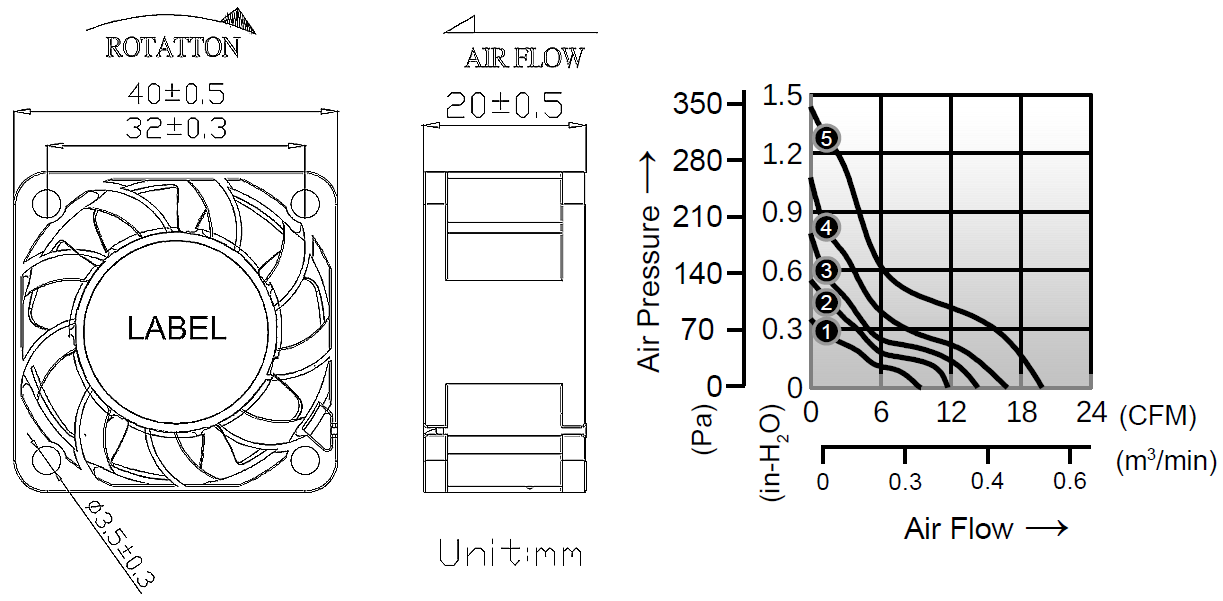

- Size: 40 x 40 x 20mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 45.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 45.0g
Download PDF
AD4020GB SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD4020V12BLWGB |
12 |
0.08 |
0.96 |
8000 |
9.4 |
0.35 |
33 |
|
② AD4020V12BMWGB |
12 |
0.11 |
1.32 |
10000 |
11.7 |
0.55 |
40 |
|
③ AD4020V12BHWGB |
12 |
0.17 |
2.04 |
12000 |
14.3 |
0.79 |
44 |
|
③ AD4020V24BHWGB |
24 |
0.13 |
3.12 |
12000 |
14.3 |
0.79 |
44 |
|
④ AD4020V12BUWGB |
12 |
0.25 |
3.00 |
14000 |
16.8 |
1.08 |
49 |
|
④ AD4020V24BUWGB |
24 |
0.15 |
3.60 |
14000 |
16.8 |
1.08 |
49 |
|
⑤ AD4020V12BVWGB |
12 |
0.41 |
4.92 |
16000 |
19.8 |
1.44 |
53 |
|
⑤ AD4020V24BVWGB |
24 |
0.18 |
4.32 |
16000 |
19.8 |
1.44 |
53 |
B = Ball Bearing
