DC Fans 2cm ~5cm

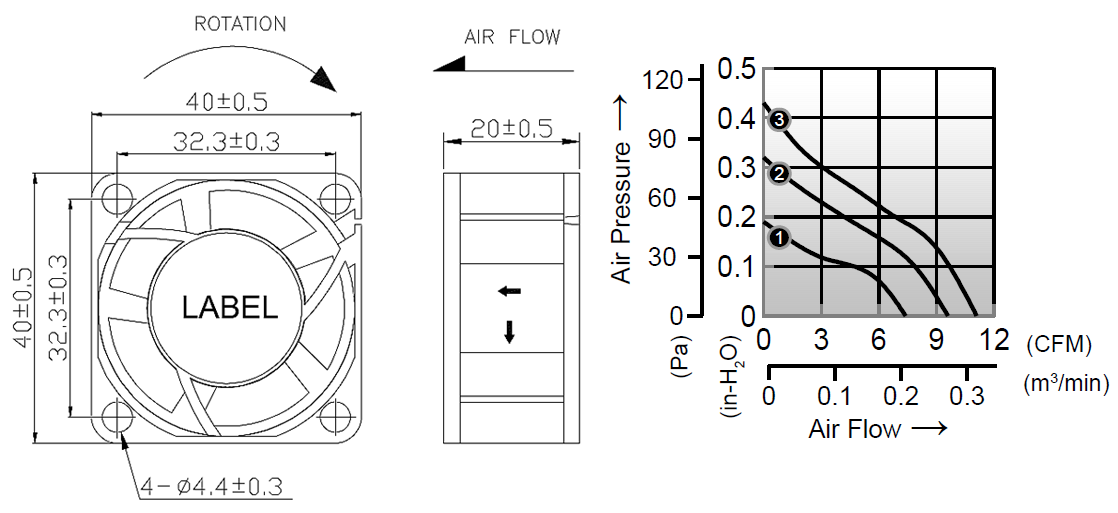

AD4020GS SERIES
- Size: 40 x 40 x 20mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 27.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 27.0g
Download PDF
AD4020GS SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD4020V12FLWGS |
12 |
0.10 |
1.20 |
5000 |
7.4 |
0.19 |
21 |
|
① AD4020V24FLWGS |
24 |
0.07 |
1.68 |
5000 |
7.4 |
0.19 |
21 |
|
② AD4020V12FMWGS |
12 |
0.12 |
1.44 |
6500 |
9.6 |
0.32 |
25 |
|
② AD4020V24FMWGS |
24 |
0.09 |
2.16 |
6500 |
9.6 |
0.32 |
25 |
|
③ AD4020V12FHWGS |
12 |
0.16 |
1.92 |
8600 |
11.1 |
0.43 |
33 |
|
③ AD4020V24FHWGS |
24 |
0.13 |
3.12 |
8600 |
11.1 |
0.43 |
33 |
F = Fluid Bearing
