DC Fans 2cm ~5cm
AD4015GE SERIES

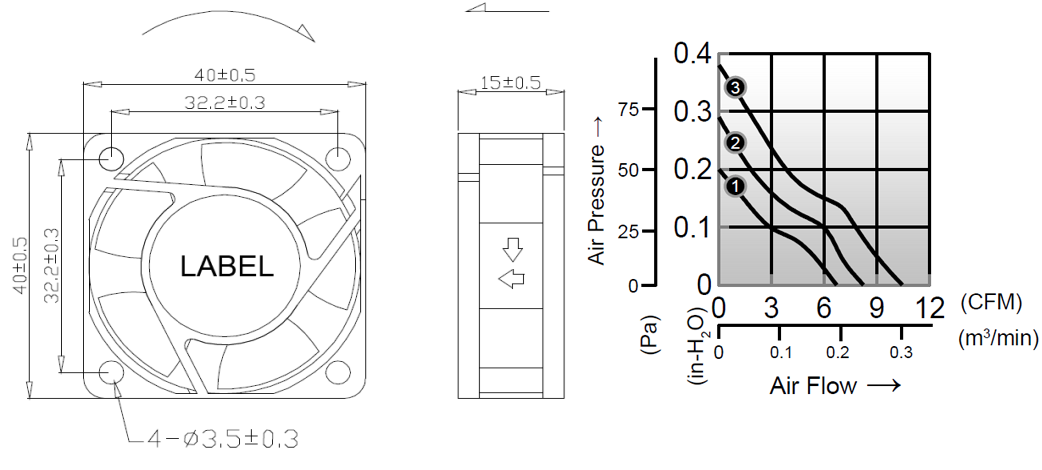

- Size: 40 x 40 x 15mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 20.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 20.0g
Download PDF
AD4015GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD4015V12BLWGE |
12 |
0.08 |
0.96 |
6000 |
6.71 |
0.20 |
28 |
|
② AD4015V12BMWGE |
12 |
0.12 |
1.44 |
7300 |
8.25 |
0.29 |
32 |
|
③ AD4015V12BHWGE |
12 |
0.16 |
1.92 |
8600 |
10.45 |
0.38 |
36 |
B = Ball Bearing
