DC Fans 12cm ~25cm

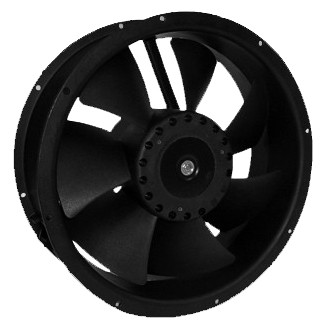

AD25489GE SERIES
- Size: Ø254 x 89mm
- Housing: Metal Frame
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 1600.0g
- Housing: Metal Frame
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 1600.0g
Download PDF

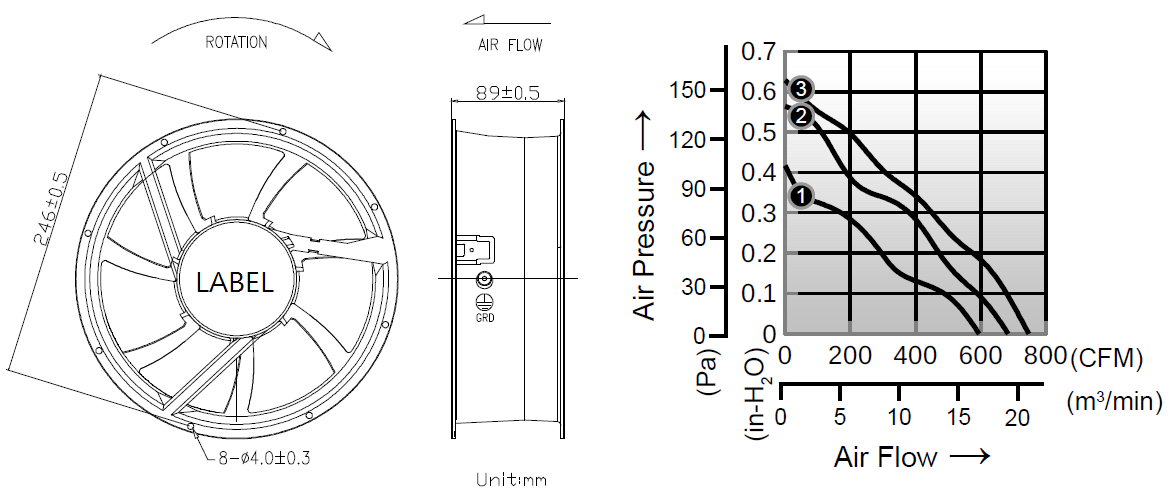

AD25489GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD25489V24BLWGE |
24 |
0.80 |
19.20 |
1400 |
595.0 |
0.49 |
59 |
|
① AD25489V48BLWGE |
48 |
0.63 |
30.24 |
1400 |
595.0 |
0.49 |
59 |
|
② AD25489V24BMWGE |
24 |
1.30 |
31.20 |
1700 |
684.0 |
0.56 |
63 |
|
② AD25489V48BMWGE |
48 |
1.00 |
48.00 |
1700 |
684.0 |
0.56 |
63 |
|
③ AD25489V24BHWGE |
24 |
2.20 |
52.80 |
2300 |
747.0 |
0.63 |
71 |
|
③ AD25489V48BHWGE |
48 |
1.50 |
72.00 |
2300 |
747.0 |
0.63 |
71 |
B = Ball Bearing
