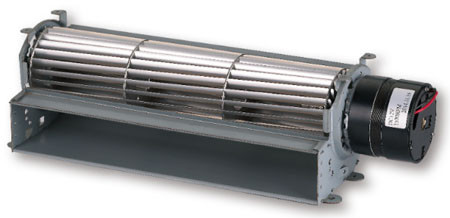

DC CROSS FLOW FANS
CD060B3QF SERIES
- Size: ø60mm
- Housing / Impeller: Aluminum / Aluminum
- Motor: DC Brushless 3-Phase Motor
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
- Housing / Impeller: Aluminum / Aluminum
- Motor: DC Brushless 3-Phase Motor
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
Download PDF

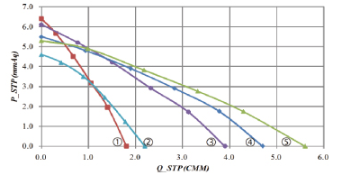

CD060B3QF SERIES (2020)
|
Model Number |

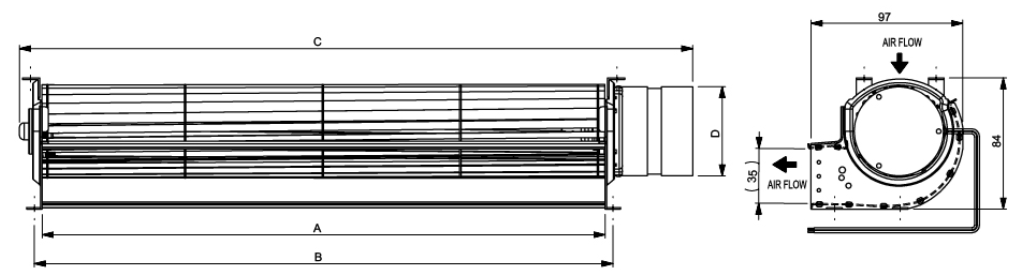

Size (mm) |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|
A |
B |
C |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(Kg) |
|
|
① CD06012V24B3HWQF |
120 |
130 |
170 |
24 |
0.24 |
5.76 |
2000 |
64 |
6.4 |
49 |
0.4 |
|
② CD06018V24B3HWQF |
180 |
190 |
230 |
24 |
0.28 |
6.72 |
1600 |
78 |
4.6 |
44 |
0.57 |
|
③ CD06024V24B3HWQF |
240 |
250 |
310 |
24 |
0.51 |
12.24 |
2000 |
138 |
6.1 |
49 |
0.79 |
|
④ CD06030V24B3HWQF |
300 |
310 |
370 |
24 |
0.59 |
14.16 |
1850 |
166 |
5.5 |
47 |
0.86 |
|
⑤ CD06036V24B3HWQF |
360 |
370 |
430 |
24 |
0.66 |
15.84 |
1750 |
198 |
5.3 |
46 |
0.95 |
