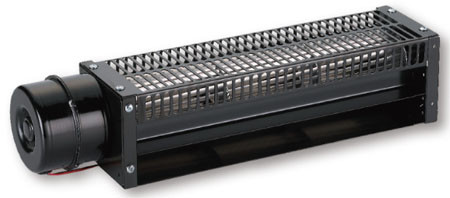

DC CROSS FLOW FANS
CD060B3BH SERIES
- Size : ø60mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
(Left Side Motor)
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
(Left Side Motor)
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF
CD060B3BH SERIES (2020)
|

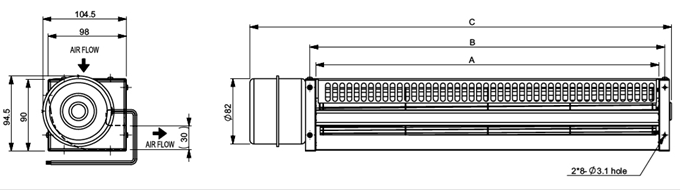

Model Number |
Size (mm) |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|
A |
B |
C |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(Kg) |
|
|

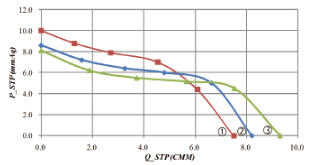

① CD06030V24B3HWBH |
306 |
321 |
405 |
24 |
2.3 |
55.2 |
3500 |
265 |
10.0 |
62 |
1.4 |
|
① CD06030V48B3HWBH |
306 |
321 |
405 |
48 |
1.0 |
48.0 |
3500 |
265 |
10.0 |
62 |
1.4 |
|
② CD06036V48B3HWBH |
368 |
383 |
467 |
48 |
1.1 |
52.8 |
3300 |
290 |
8.6 |
60 |
1.6 |
|
③ CD06042V48B3HWBH |
429 |
444 |
528 |
48 |
2.0 |
96.0 |
3150 |
290 |
8.1 |
60 |
1.8 |
