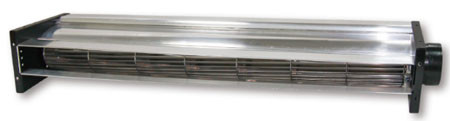

DC CROSS FLOW FANS
CD060B3M SERIES
- Size : ø60mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF
CD060B3M SERIES (2020)
|
Model Number |
Size (mm) |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|

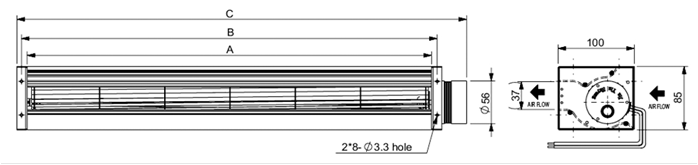

A |
B |
C |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(Kg) |
|
|
①CD06030V24B3HWM |
310 |
325 |
370 |
24 |
0.53 |
12.72 |
2650 |
117 |
2.5 |
45 |
0.95 |
|
②CD06036V24B3HWM |
370 |
385 |
430 |
24 |
0.58 |
13.92 |
2600 |
139 |
2.5 |
45 |
1.00 |
|
③CD06042V24B3HWM |
430 |
445 |
490 |
24 |
0.63 |
15.12 |
2550 |
163 |
2.4 |
44 |
1.10 |
|
④CD06052V24B3HWM |
530 |
545 |
590 |
24 |
0.69 |
16.56 |
2450 |
198 |
2.3 |
43 |
1.25 |
|
⑤CD06060V24B3HWM |
610 |
625 |
670 |
24 |
0.73 |
17.52 |
2400 |
219 |
2.3 |
43 |
1.35 |
|
⑥CD06070V24B3HWM |
710 |
725 |
770 |
24 |
0.79 |
18.96 |
2350 |
244 |
2.2 |
42 |
1.45 |
|
⑦CD0604242V24HWM (Double Fan) |
870 |
885 |
953 |
24 |
0.86 |
20.64 |
2350 |
290 |
2.2 |
42 |
1.90 |
