DC CROSS FLOW FANS

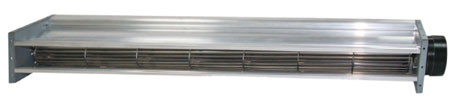

CD050B3M SERIES
- Size : ø50mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF

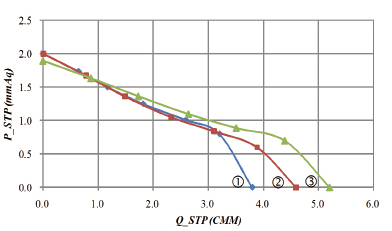

CD050B3M SERIES (2020)
|
Model Number |

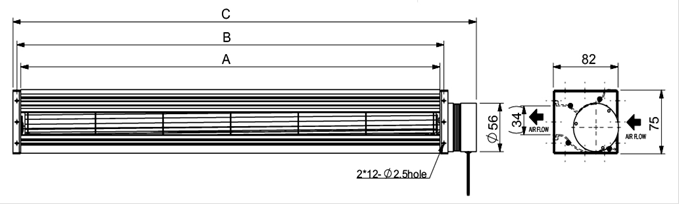

Size (mm) |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|
A |
B |
C |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(Kg) |
|
|
①CD05042V24B3HWM |
430 |
440 |
486 |
24 |
0.46 |
11.04 |
2800 |
134 |
2.0 |
43 |
1.00 |
|
②CD05052V24B3HWM |
530 |
540 |
586 |
24 |
0.49 |
11.76 |
2750 |
163 |
2.0 |
43 |
1.10 |
|
③CD05060V24B3HWM |
610 |
620 |
666 |
24 |
0.55 |
13.20 |
2700 |
184 |
1.9 |
42 |
1.20 |
