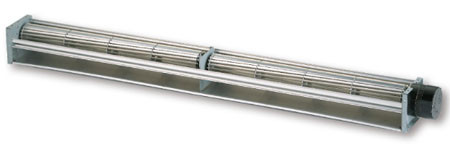

DC CROSS FLOW FANS
CD045B3F (DOUBLE BLOWER) SERIES
- Size : ø45mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF
CD045B3F SERIES (2020)
|

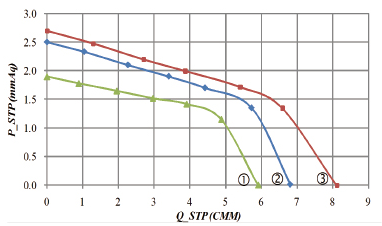

Model Number |

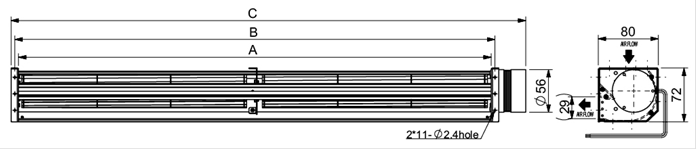

Size (mm) |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|
A |
B |
C |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(Kg) |
|
|
①CD0453030V24B3HWF |
630 |
640 |
686 |
24 |
0.49 |
11.76 |
1800 |
208 |
1.9 |
50 |
1.15 |
|
②CD0453636V24B3HWF |
750 |
760 |
806 |
24 |
0.55 |
13.20 |
1750 |
240 |
2.5 |
50 |
1.25 |
|
③CD0454242V24B3HWF |
870 |
880 |
926 |
24 |
0.60 |
14.40 |
1650 |
286 |
2.7 |
49 |
1.35 |
