DC CROSS FLOW FANS

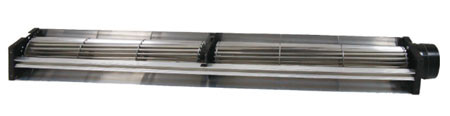

CD045B3G (DOUBLE BLOWER) SEREIS
- Size : ø45mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF
CD045B3G SERIES (2020)
|

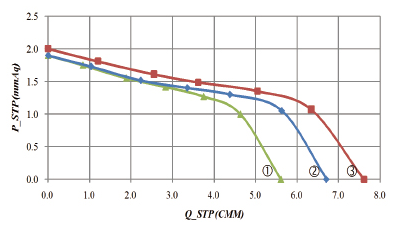

Model Number |

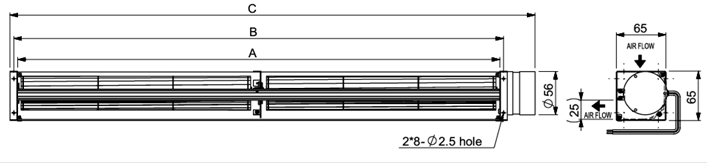

Size (mm) |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|
A |
B |
C |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(Kg) |
|
|
①CD0453030V24B3HWG |
630 |
640 |
686 |
24 |
0.40 |
9.60 |
2000 |
198 |
1.9 |
44 |
1.0 |
|
②CD0453636V24B3HWG |
750 |
760 |
806 |
24 |
0.46 |
11.04 |
1950 |
237 |
1.9 |
44 |
1.1 |
|
③CD0454242V24B3HWG |
870 |
880 |
926 |
24 |
0.51 |
12.24 |
1850 |
269 |
2.0 |
44 |
1.2 |
