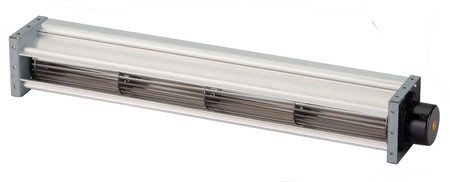

DC CROSS FLOW FANS
CD040B3M SERIES
- Size : ø40mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF
CD040B3M SERIES (2020)
|

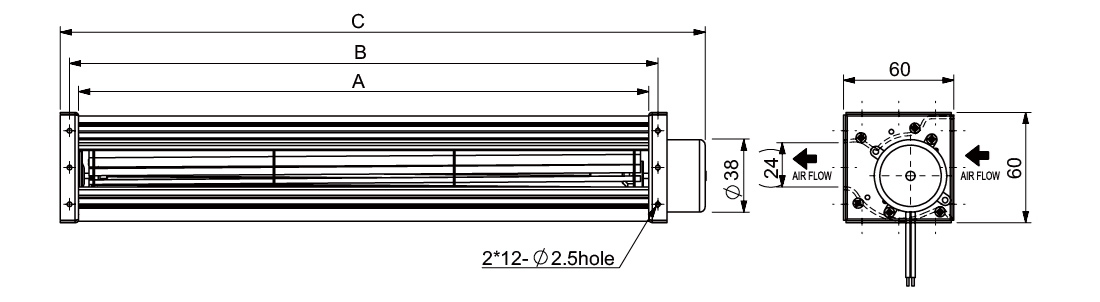

Model Number |
Size (mm) |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|
A |
B |
C |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(g) |
|
|
①CD04030V12B3HWM |
310 |
320 |
351 |
12 |
0.40 |
4.80 |
3250 |
57 |
1.4 |
42 |
455 |
|
①CD04030V24B3HWM |
24 |
0.20 |
4.80 |
||||||||
|
②CD04035V12B3HWM |
360 |
370 |
401 |
12 |
0.43 |
5.16 |
3100 |
67 |
1.3 |
40 |
500 |
|
②CD04035V24B3HWM |
24 |
0.21 |
5.04 |
||||||||
|
③CD04040V12B3HWM |
410 |
420 |
451 |
12 |
0.46 |
5.52 |
3000 |
71 |
1.2 |
40 |
540 |
|
③CD04040V24B3HWM |
24 |
0.22 |
5.28 |
||||||||
_for B/S=Ball Bearing/Sleeve Bearing
