- Housing / Impeller : Aluminum / Aluminum
- Motor : * CD040E : DC Brushless Motor
* CD040B3E : DC Brushless 3-Phase Motor
* CD040F : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
|
Model Number |

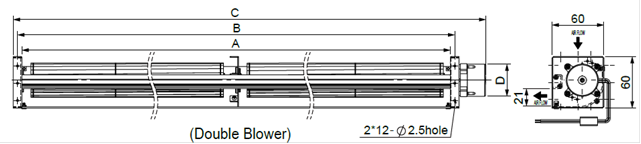

Size (mm) |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
|||
|
A |
B |
C |
D |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(g) |
|
|
①CD04009V12BHWE |
98 |
108 |
133 |
31 |
12 |
0.22 |
2.64 |
2950 |
25 |
2.5 |
37 |
220 |
|
①CD04009V24BHWE |
24 |
0.17 |
4.08 |
|||||||||
|
②CD04015V12BHWE |
160 |
170 |
195 |
31 |
12 |
0.28 |
3.36 |
2500 |
35 |
1.9 |
37 |
260 |
|
②CD04015V24BHWE |
24 |
0.19 |
4.56 |
|||||||||
|
③CD04019V12B3HWE |
198 |
208 |
233 |
31 |
12 |
0.29 |
3.48 |
2400 |
46 |
2.2 |
36 |
275 |
|
③CD04019V24B3HWE |
24 |
0.16 |
3.84 |
|||||||||
|
④CD04029V12B3HWE |
300 |
310 |
355 |
31 |
12 |
0.33 |
3.96 |
2000 |
64 |
1.6 |
32 |
350 |
|
④CD04029V24B3HWE |
24 |
0.18 |
4.32 |
|||||||||
|
⑤CD04030V24B3HWE |
310 |
320 |
350 |
38 |
24 |
0.30 |
7.20 |
2600 |
95 |
3.0 |
39 |
420 |
|
⑥CD04035V24B3HWE |
360 |
370 |
400 |
38 |
24 |
0.32 |
7.68 |
2450 |
106 |
2.6 |
38 |
470 |
|
⑦CD04040V24B3HWE |
410 |
420 |
450 |
38 |
24 |
0.34 |
8.16 |
2300 |
124 |
2.5 |
37 |
510 |
|
⑧CD0403030V24B3HWF (Double Fan) |
630 |
640 |
670 |
38 |
24 |
0.26 |
6.24 |
1800 |
131 |
1.4 |
39 |
690 |
|
⑨CD0403535V24B3HWF (Double Fan) |
730 |
740 |
770 |
38 |
24 |
0.27 |
6.48 |
1750 |
148 |
1.4 |
38 |
770 |
|
⑩CD0404040V24B3HWF (Double Fan) |
830 |
840 |
870 |
38 |
24 |
0.28 |
6.72 |
1600 |
163 |
1.3 |
37 |
830 |
_for B/S=Ball Bearing/Sleeve Bearing
