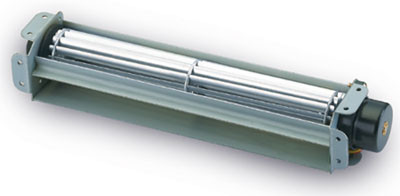

DC CROSS FLOW FANS
CD025E SERIES
- Size: ø25mm
- Housing / Impeller : Aluminum / Aluminum
- Motor: DC Brushless Motor
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
- Housing / Impeller : Aluminum / Aluminum
- Motor: DC Brushless Motor
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
Download PDF
CD025E SERIES (2020)
|
Model Number |

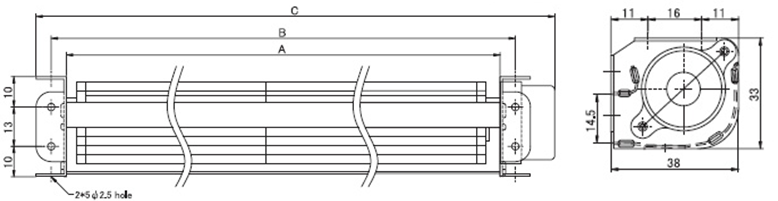

Size (mm) |
Voltage |
Current |
Power |
Speed |

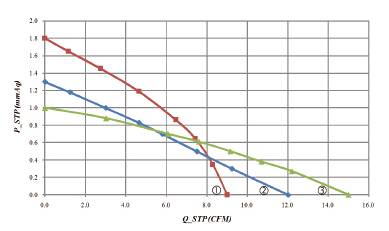

Air Flow |
Pressure |
Noise |
Weight |
||
|
A |
B |
C |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(g) |
|
|
①CD02509V12BHWE |
98 |
108 |
128 |
12 |
0.11 |
1.32 |
3100 |
11 |
1.60 |
32 |
95 |
|
②CD02515V12BHWE |
160 |
170 |
190 |
12 |
0.13 |
1.56 |
2700 |
16 |
1.4 |
29 |
120 |
|
③CD02519V12BHWE |
198 |
208 |
228 |
12 |
0.1.4 |
1.68 |
2500 |
18 |
1.3 |
28 |
140 |
|
④CD02524V12BHWE |
250 |
260 |
280 |
12 |
0.20 |
2.4 |
2600 |
25 |
1.8 |
32 |
160 |
|
⑤CD02529V12BHWE |
298 |
308 |
328 |
12 |
0.21 |
2.52 |
2500 |
30 |
1.6 |
33 |
180 |
_for B/S=Ball Bearing/Sleeve Bearing
